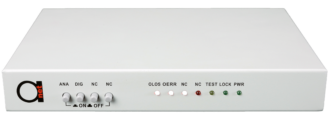

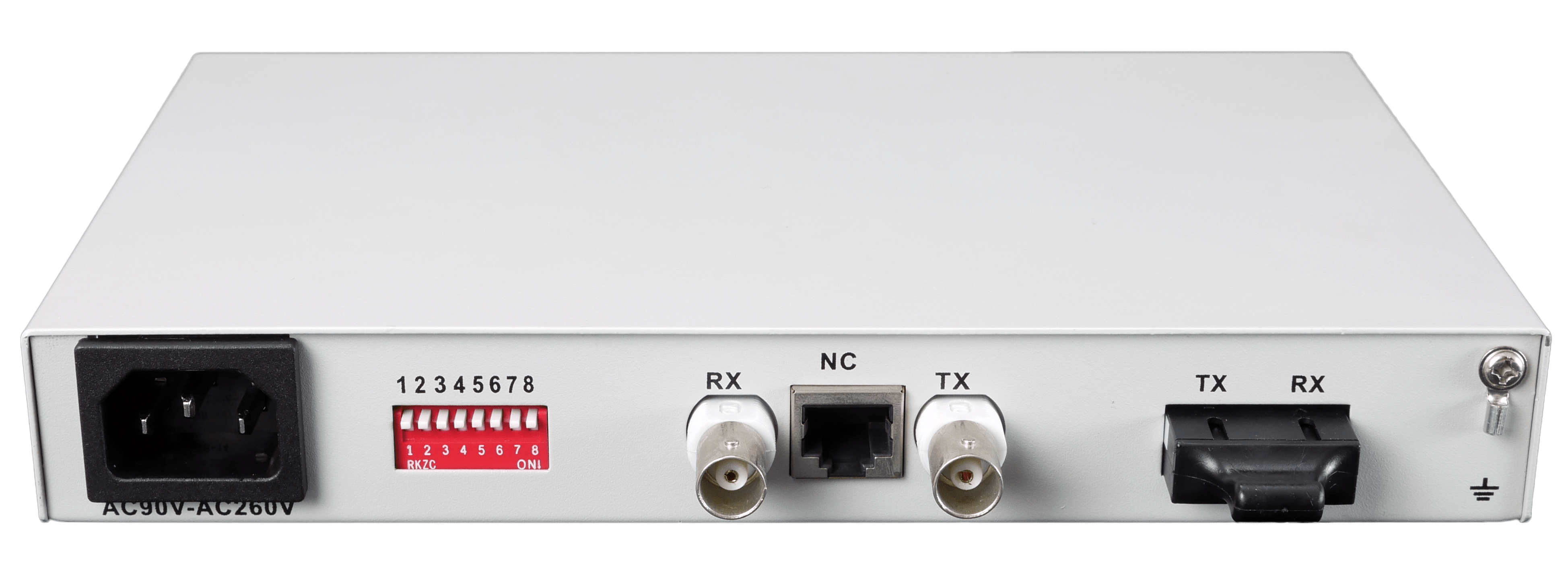

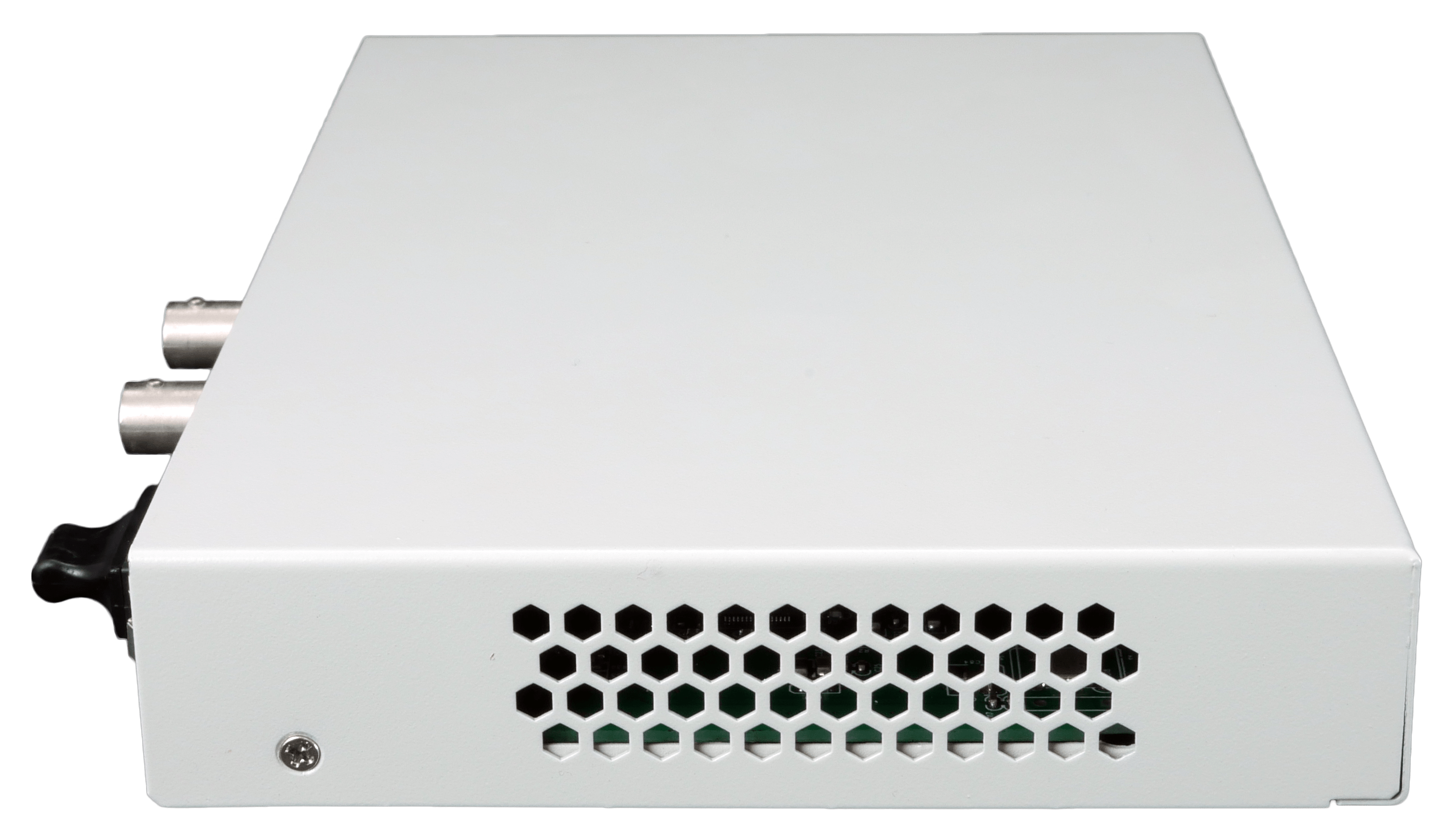

STM1 converter / OC3 Electrical to Optical converter

AN-STM1/SM is an interface converter for STM-1 electrical and optical interface conversion. It is designed for the SDH equipment coaxial interface and optical interface interconnect, as well as the ATM 155.520 Mbps interface and SDH device interconnection.

STM1 converter with high reliability, comply with ITU-T G.703 and G.957
Single Fiber Bi-Directional is selectable
State-of-the-art design, ensure normal working under different environment.
Supports local and remote loop-back on electrical or optical interface for system diagnostic.
Suitable for SDH and ATM 155.52 Mbps interface interconnection.
Simple operation and maintenance
Compact design and low power consumption.

Items	Description
Electrical Interface	Standard		ITU-T G.703 Compliant
	Data Rate		155.52 Mbps
	Line Code		CMI
	Physical Connector		BNC Coaxial
Optical Interface	Standard		ITU-T G.957 STM-1
	Bit rate		155.520 Mbps
	Coding		NRZ
	Connector		SC
	Light source		Laser Diode
	Wave length		1310nm (Typical),or 1550 nm (Optional) or Single Fiber Bi-Directional (Optional)
	Transmit power		-12 dBm (1310nm) / -5 dBm (1550nm)
	Receive sensitive		-36 dBm (1310nm) / -38 dBm (1550nm)
Power supply	AC 220V		Range 165V to 265 V
	DC -48V		Range -36V to -72V
	Power Consumption		<3 W
Environment	Working Temperature	0 – 50 C
	Relative Humidity	>90% (Non condensing)
Dimension	WxHxD(mm): 205 x 136 x 42

Application:

AN-STM1/MM	STM-1 fiber multiplexer (Optical/Electrical converter). Multimode 2 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/SM-20	STM-1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 20 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/SM-40	STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 40 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/SM-50	STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 50 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/SM-60	STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 60 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/SM-80	STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 80 km, 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/SM-100	STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 100 km , 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/SM-120	STM1 fiber multiplexer (Optical/Electrical converter). Single mode dual fiber 120 km , 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/WDM-20	STM-1 fiber multiplexer (Optical/Electrical converter). Single mode WDM (BiDi) 20 km , 48 V/110-220 VAC for option, SC/FC/ST connector types available
AN-STM1/WDM-40	STM-1 fiber multiplexer (Optical/Electrical converter). Single mode WDM (BiDi) 40km , 48 V/110-220 VAC for option, SC/FC/ST connector types available

Description

AN-STM1/SM is an STM-1 converter for STM-1 electrical and optical interface conversion. It is designed for the SDH equipment coaxial interface and optical interface interconnect, as well as the ATM 155.520 Mbps interface and SDH device interconnection.

Now available in WDM (single fiber version)!

Complete loop-back facility is supported for system diagnostic and commissioning. Compact casing and simple operation achieve the cost saving and investment protected.
