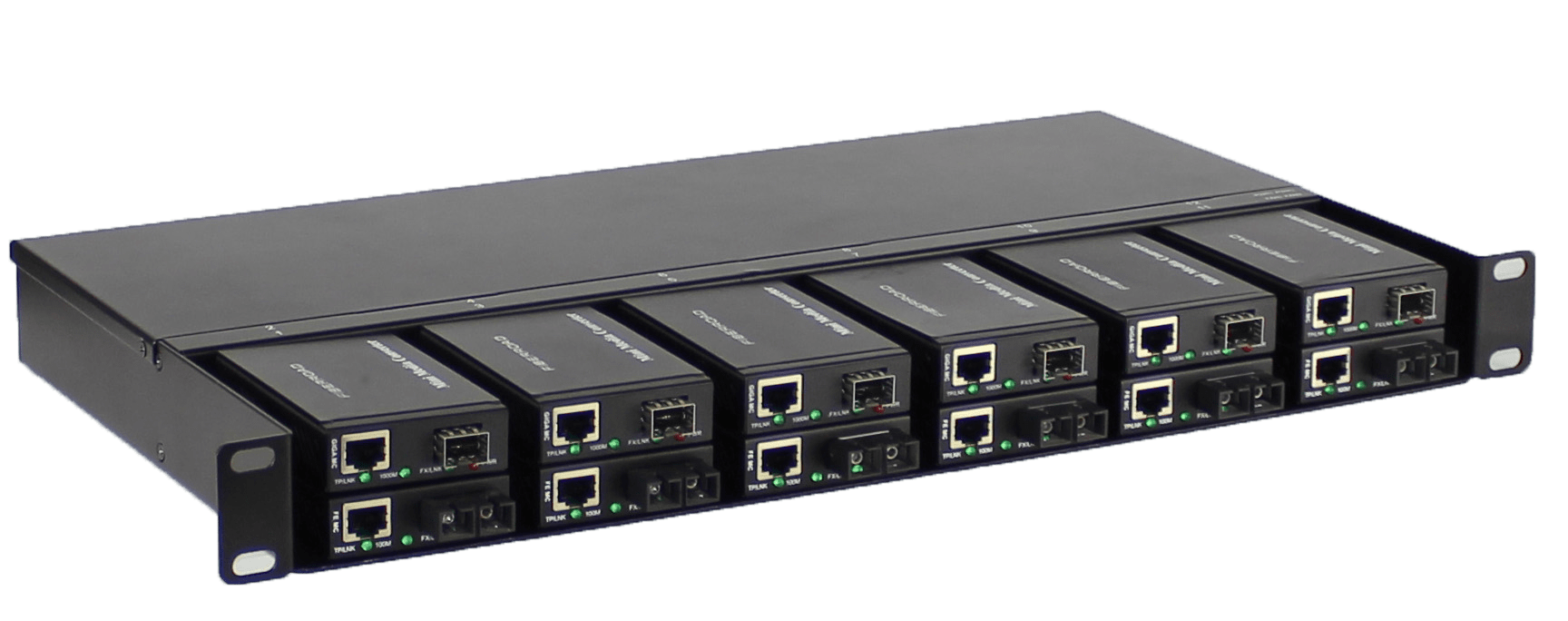

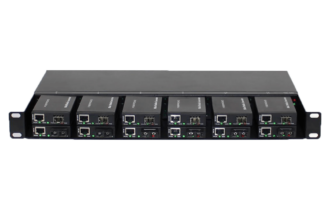

Unmanaged series 12 slots chassis for Mini Media Converter

The AN-CH05-mini provides 12 slots for Mini type media converter. It is a standard 19 inch 1U rack mount chassis which can be mounted into standard 19 inch rack.

12 slots for Mini media converter 19 inch rack mount, 1U high
Internal back up power supply with cooling fan
Plug and play operation
Two power supply units in set
Compact & easy to install
State of art AD-net special design

Diagnostic LED: Power LED, Fan LED

Power input: 100-240VAC 50~60Hz, DC 36-72V (48V typical)
Power consumption (full mode): 36W
Power consumption (empty mode): 10W
Operation temperature: 0~50 C
Storage temperature: -30~60 C
Dimension: 485mm(L) X 270mm(W) X 44.5mm(H)

AN-CH05-mini/AA	12 slots rack for mini type fiber media converters, dual power supply included – AC+AC
AN-CH05-mini/AD	12 slots rack for mini type fiber media converters, dual power supply included – AC+DC
AN-CH05-mini/DD	12 slots rack for mini type fiber media converters, dual power supply included – DC+DC

Description

The AN-CH05-mini provides 12 slots for any combination of mini type media converter. Chassis can be used as concentrator for AD-Technology unmanaged converter series – for installing in 19′ rack. You can take same module out and use as standalone module, and no need guess, how much you will need media converters for chassis, and how much will need for standalone – AD-net has solved this problem, by making our converters – pure universal.

Designed for continuous operation, the chassis is equipped with cooling fan and redundant power supplies. Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. AN-CH05-mini rack-mount chassis eliminates the external power adapters for AN-UM-mini and AN-UMG-AS-mini series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple AN-UM-mini and AN-UMG-AS-mini series converters.
