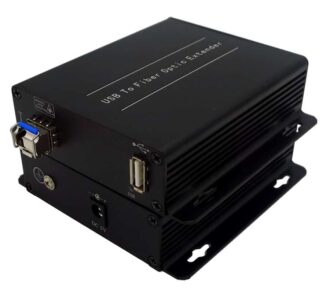

USB 2.0 to Fiber Optical Extender Set

Max extension distance 250m (SM or MM fiber cable).
Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Auto recognition of High-speed (25Mbps~480Mbps), Full-speed (500Kbps~12Mbps), Low-speed (10Kbps~1.5Mbps) USB device.
Support USB2.0 interface camera, printer, U disk, mouse and keyboard, etc.

Optical	Connector	SM/MM LC
Optical	Wave length	1310nm/1550nm
Physical	Size (L× W ×H)	104mm x104mm x28mm
	Case	Aluminum
	Color	Black
	N.W.	0.75Kg
Power	Voltage	5V DC
	sender power consumption	<3.5W
	receiver power consumption	<3.5W
Environment	Working temperature	-20℃-70℃
	Storage temperature	-40-85℃
	Humidity	0-95% (non-condensing)

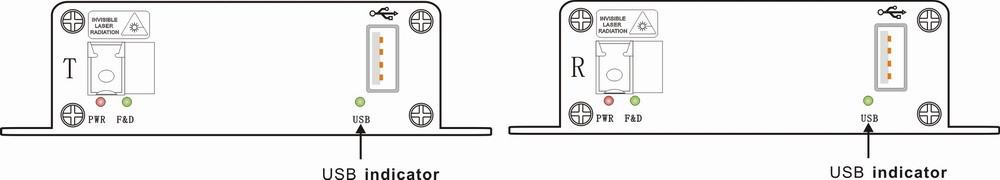

Note: The USB indicator green light flash when the device is connected well, otherwise you need to re plug USB devices.

English advertisement

Рекламный ролик

…and here… quick test of our USB 2.0 version fiber optic extenders testing with USB camera – 250 m fiber cable used in middle between Tx and Rx side of our extenders.

AN-USB-EXT-2.0

USB 2.0 To Fiber Optic Extender set, Transmitter + Receiver, Supports USB 2.0, USB 1.1 & USB 1.0 (not compatible to USB 3.0 or USB 3.1), max distance 250 m, universal Single mode and Multimode Cable support

Description

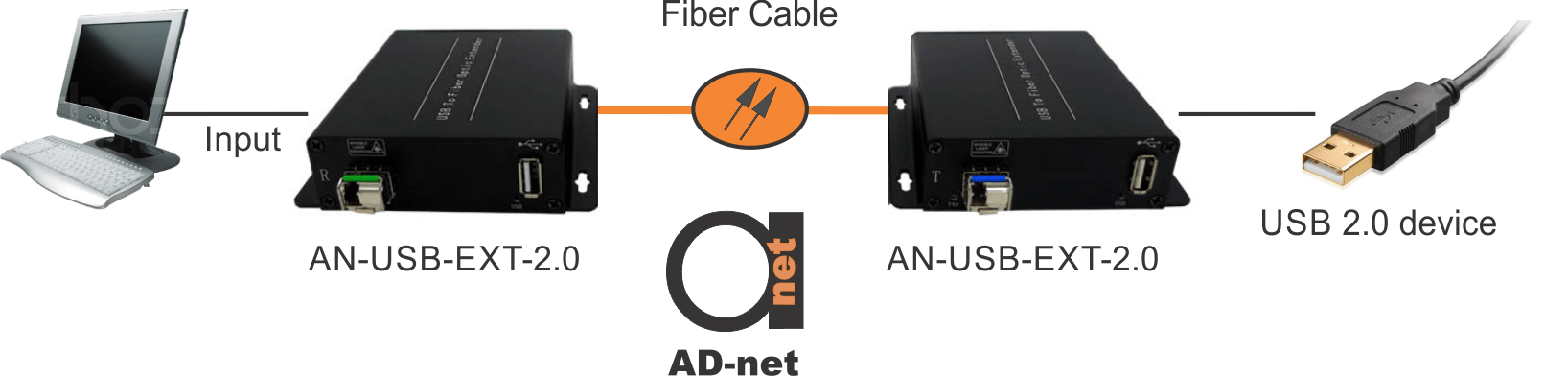

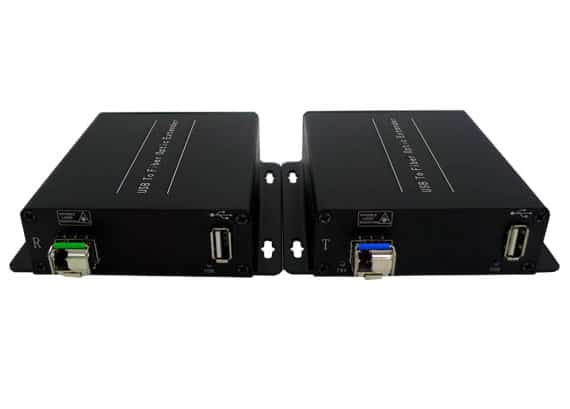

USB 2.0 To Fiber Optic Extender, Also called USB2.0 To Fiber Converter. The device includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 fiber cable, max distance 250m (SM or MM fiber cable).
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
