USB to RS-485 Interface Converter with RJ-45 port

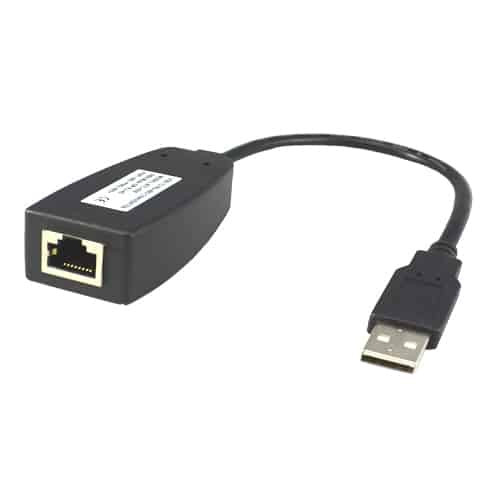

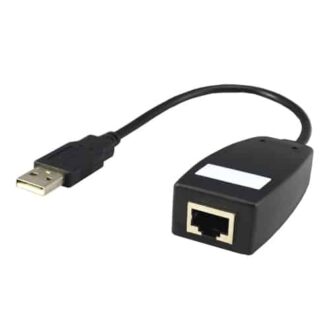

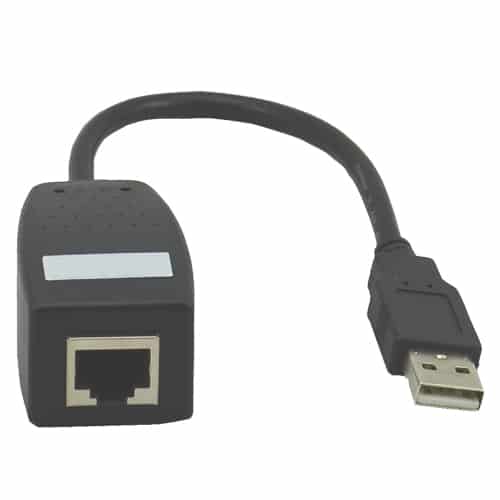

The AN-USB-RS485-RJ45 module is a cost-effective way to convert RS485 industrial buses to a USB interface. When connected to a PC USB port the AN-USB-RS485-RJ45 module is automatically detected and is installed as a native COM port which is compatible with any existing serial communication application. Multiple modules can be installed when using USB hubs thus allowing a hassle free configuration of a multi serial system without any IRQ or DMA configuration.

The AN-USB-RS485-RJ45 converter can be configured for RS485 two-wire (Half Duplex) networks. When operating in two-wire RS485 the data transfer control is automatically done by the converter. Two independent and RS485 networks can be supported by one AN-USB-RS485-RJ45 module thus duplicating possible number of remote devices.

Computer interface: USB V1.1 2.0 Plug and Play.
Operational system virtual serial port driver.
Supports Windows 98/ME/XP/2000/CE, MAC & Linux 2.4.20 or superior.
Field Interfaces: RS-485 Half Duplex (dual buses),
Automatic flow control for RS485 Half Duplex.
Transmission rate: from 300 bps to 1Mbps.
Maximum RS-485 cable length : 1200 m
Maximum number of devices in the RS485 network: Half Duplex to 32 devices
Power: from the USB port.
Consumption: <100 mA.
RS-485 bus protection: 600W.
USB connection: Mini-B connector.150mm cable
with the module.
RS-485 connector: RJ-45 type accepting
ABS enclosure: 67 x 30 x 24 mm(not include cable)
Operating environment: 0 to 70°C, 10 to 90% relative humidity, non-condensing.

The RS-485 termination of the Interface is implemented as RJ-45 plug. The pin assignments for the connector can be found in the following table as well as on a sticker applied to the unit.

RS-485 Pinout at RJ-45

PIN#	RS-485
1	485+
2	485-

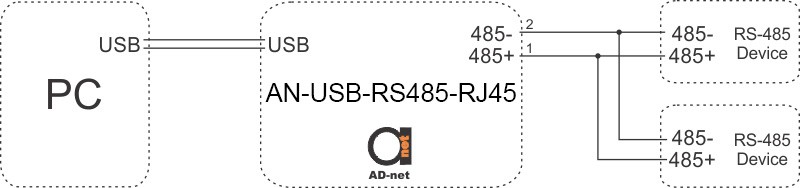

Wiring examples

AN-USB-RS485-RJ45

USB to RS-485 converter, RJ45 type for RS485 connector
