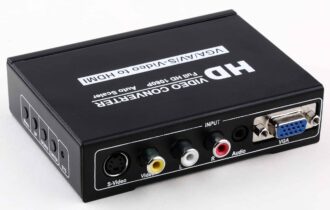

VGA + CVBS(AV) + S-VIDEO + STEREO to HDMI converter

VGA+CVBS+S-video to HDMI signal converter which will convert VGA/S-video/CVBS video signal and stereo audio signal to HDMI signal. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Install in seconds, no need of setting.
Auto detect the input resolution, no need of setting.
Supports convert VGA video and stereo audio into complete HDMI.
Supports convert CVBS video and stereo audio into complete HDMI.
Supports convert S-video video and stereo audio into complete HDMI.
Supports highest video resolution up to 1080p.
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Supports OSD( On Screen Display ) menu operation.

Signal Inputs/Output
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Input Video / Resolution	VGA	640x480p/800x600p/1024x768p/1280x720p/ 1280x768p/1280x800p/1280x1024p/1360x768p/1600x1200p/1920x1080p/1920x1200p
	CVBS	NTSC / PAL
	Svideo	NTSC / PAL
Output Video / Resolution	HDMI	480i / 576i / 1080i
		480p/576p/720p/1080p/ 640x480p/800x600p/1024x768p/ 1280x768p/1280x800p/1280x1024p/ 1360x768p/1600x1200p/1920x1200p
Operating Frequency
Vertical Frequency Range	50/60Hz
Video Amplifier Bandwidth	1.65Gpbs/165MHz
Mechanical
Size( L x W x H )	110 x 80 x 27 mm
Weight(Net)	225 g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃ to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 95 % RH (no condensation)
Power Requirement
External Power Supply	5V DC@1A
Power consumption (Max)	5W
Regulatory Approvals
Converter Unit	FCC,CE,
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version

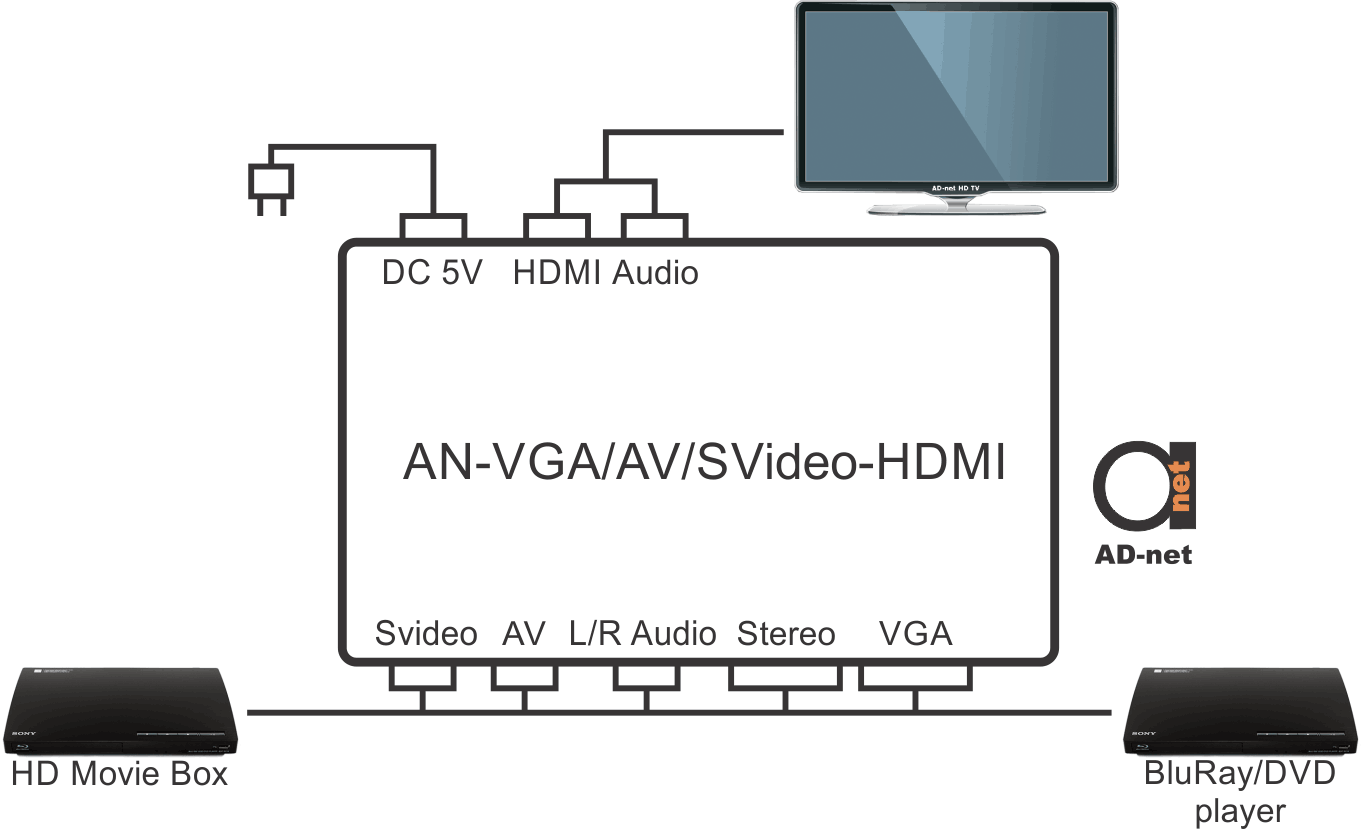

1	The interface of VGA intput.
2	The interface of stereo audio input.
3	The interface of L/R audio input(2xRCA style jack).
4	The interface of CVBS input.
5	The interface of S-video input.
6	DC power input interface.
7	Power light – When the power is on, this LED is lighted.
8	The interface of stereo audio output( 3.5mm Jack).
9	The interface of HDMI output.
10	System status light – when the video source is valid, this LED is lighted.
11	Button 1	Acknowledgement key
12	Button 2	Down key / Multiply key
13	Button 3	Up key / Reducing key
14	Button 4	Menu key / Back key

AN-VGA/AV/SVideo-HDMI

VGA + CVBS(AV) + S-VIDEO + STEREO To HDMI converter
