VGA KVM fiber optic extender

The product consists of the transmitter and the receiver, use advanced uncompressed digital HD video and high-speed digital fiber optic transmission technology, you can easily transmit a variety of resolutions of computers, high-definition video sources, HD DVD / DVR and other equipment output of VGA HD signals over long distances to the remote, and with local VGA loop-through, independent analog audio, anti-interference ability, ensure signal integrity and stability.

All-digital, uncompressed, high-definition optical transmission.
Compliance with the VGA standard protocol.
Support Independent analog audio.
Support local VGA loop-through.
Automatic identification and configure various display modes.
The highest resolution to 1920*1200@ 60Hz.
Single / multi-mode fiber transmission.
Built-in ESD protection circuitry, can effectively prevent electrostatic damage.
Site installation: easy, plug and play, no need to set

Operating Temperature Range	-5 to +70°C
Operating humidity range	5 to 90 % RH (no condensation)
Input and output video signal	VGA
Support Video Format	1920×1200@60Hz / 1920×1080@60Hz 1600×1200@60Hz / 1680×1050@60Hz 1280×1024@60Hz / 1280×1024@75Hz 1280×800@60Hz / 1280×768@60Hz 1280×720@60Hz / 1024×768@60Hz 1024×768@75Hz / 800×600@60Hz 800×600@75Hz
Transmission distance	Single mode dual fiber 10KM-40KM The default is 10KM. Multi mode fiber not available now
Input and output audio interface	3.5MMAudio
Support input and output audio formats	44.1K,48K,96K,176K,192K
Input Power	DC5V
Power Consumption	VGA Transmitter 4W VGA Receiver 4W
Dimensions	10710424mm (LWH)

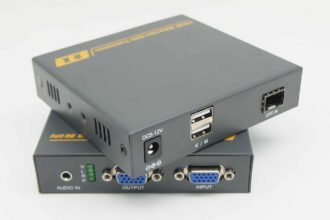

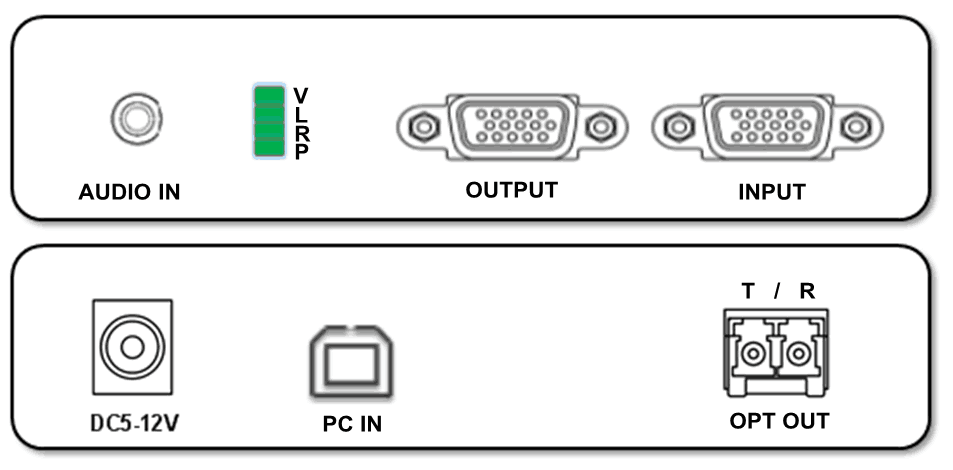

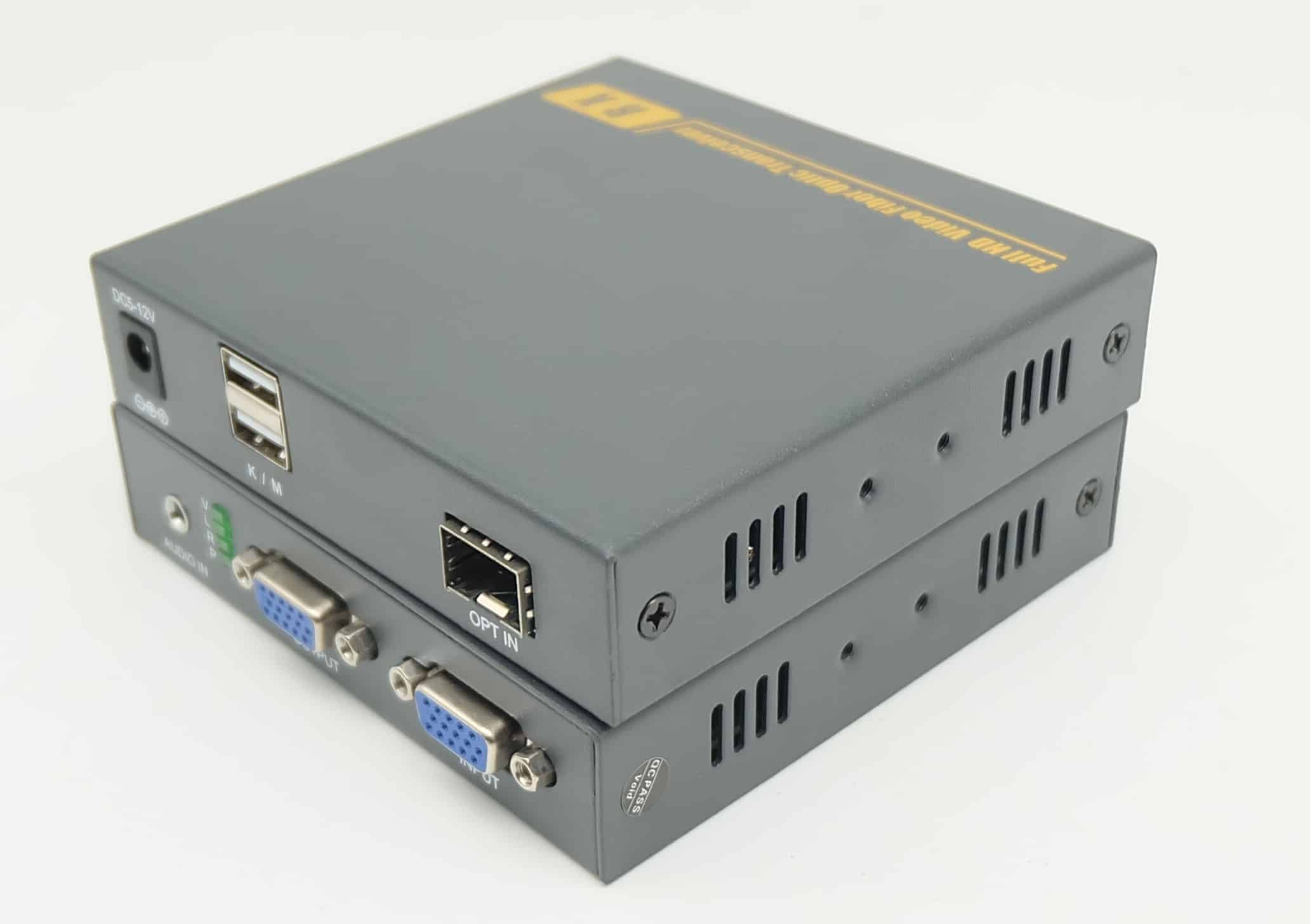

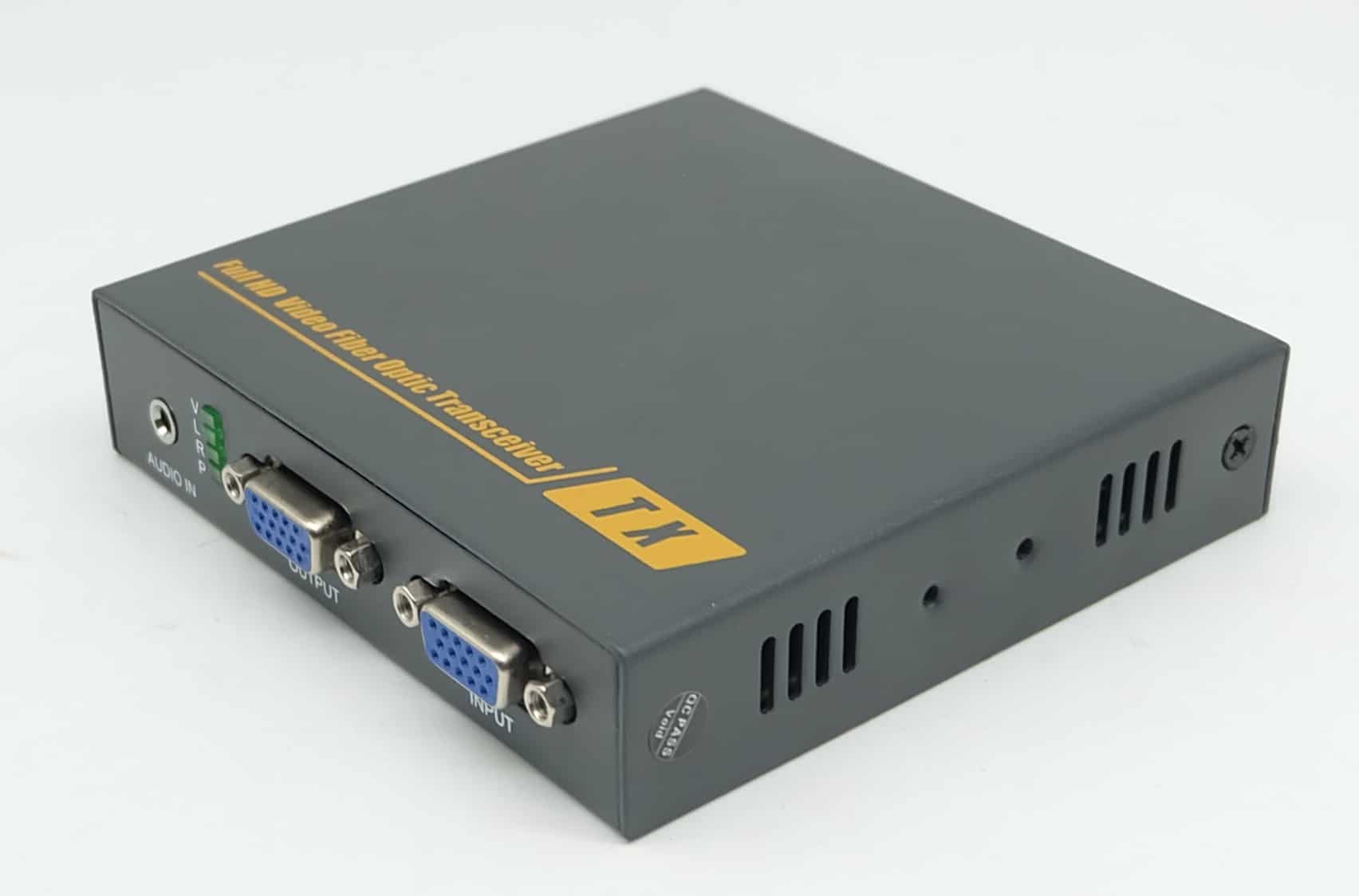

Transmitter:

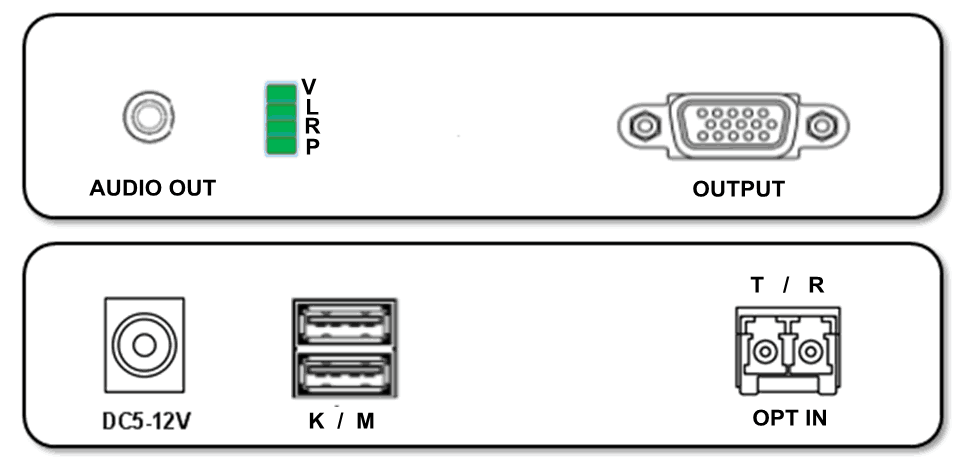

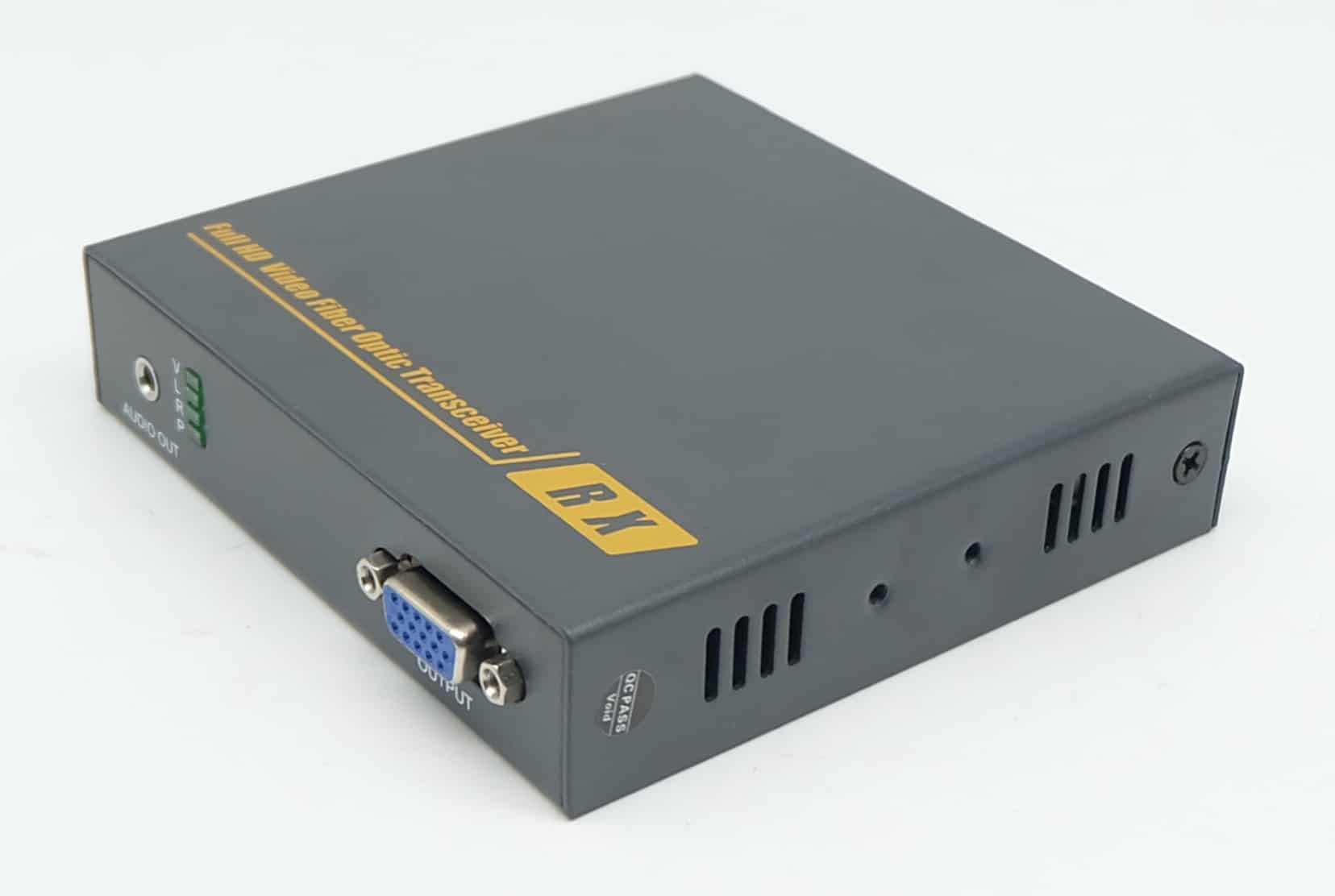

Receiver:

Port Description	VGA Transmitter/ Receiver
INPUT/OUTPUT	VGA signal input/output
AUDIO IN/OUT	Stereo audio input/output
PC IN	USB-B interface, connect to computer, transfer mouse and keyboard signals
K / M	USB mouse and keyboard interface
DC5-12V	Power adapter input
OPT IN/OUT	SFP optical module access, LC interface (T: send, R: receive)
Indicator	Description
V(VIDEO)	Video indicator (light: recognition of video signal, off: no video signal recognized)
L(LOCK)	Video lock signal indicator (light: locked, off: not locked)
R(RUN)	System indicator (light: normal operation, off: operation error)
P(POWER)	Power indicator (light: power is normal, off: no power input)

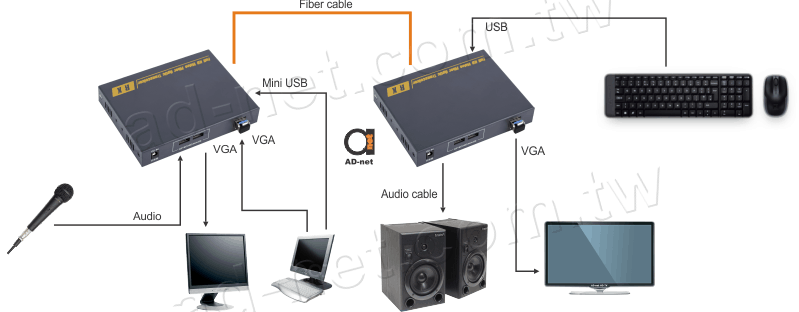

Connect the VGA input signal to the VGA INPUT of transmitter.
Connect the audio input signal to the AUDIO IN of transmitter..
Connect the VGA output signal of receiver to the VGA displayer (such as HDTV, etc.).
Connect the AUDIO OUT of receiver to the speaker.
Use the LC interface optic fiber connect the OPT IN and OPT OUT.
Connect the transmitter and receiver to the power supply. When the indicator light is normal, the system runs normally.

This is a one of most port rich unit in our video extenders range, many ports to connect, however as you can see still can be done in few minutes.

AN-KVM-VGA-EXT01

VGA & KVM signal extender over fiber, distance depends on SFP module

Description
