VGA USB KVM over CAT5/CAT6e extender, audio signal support

The AN-KVM-VGA-UTP-EXT01 extender provides extension of VGA signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1080p and keyboard/mouse and external stereo audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits VGA video and audio signals up to 200m over a single UTP CAT6 cable.
Support video resolution up to 1920*1080@60Hz
Compliance with VGA standard.
Support keyboard and mouse signal transmission
High compatibility, can auto-match source and display device.
Built-in automatic adjustment system, make the image smooth, clear and stable.
Built-in ESD protection system.
Simple to install, plug and play.

Parameter		Description
Video	Standards	VGA
	Maximum Pixel Clock	380MHz
	Maximum Data Rate	6.75Gbps
	Resolution	Max: 1920X1080@60Hz
	Connector	VGA
	Impedance	75Ω
Audio	Interface	3.5mm stereo earphone seat
Audio	Signal Type	stereo
USB	Interface	USB
UTP	Interface	IEEE 568B
UTP	Transmission Distance	Cat5e Max: 150m Cat6 Max: 200m
Other	Power Supply	The power adapter: DC 5V/1A
	Power Dissipation	Max: 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1029625 mm
	The Warranty	1 Year Free Warranty

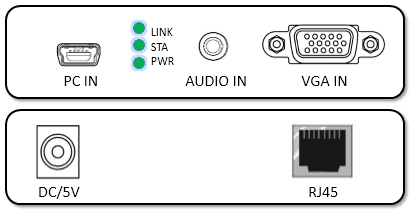

Transmitter:

VGA USB KVM over CAT5/CAT6e extender, audio signal support

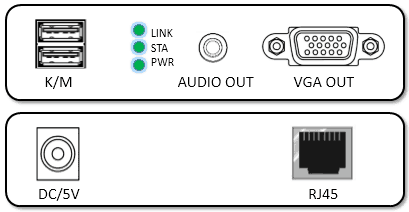

Receiver:

VGA USB KVM over CAT5/CAT6e extender, audio signal support

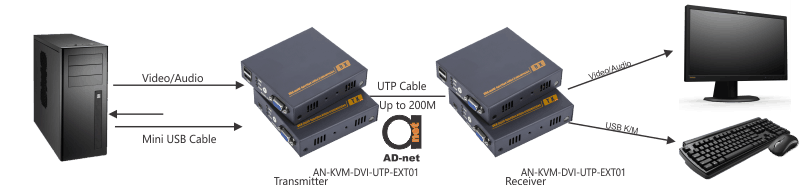

Connect the VGA input source (such as HD-DVD、PS3、STB etc. ) to transmitter.
Connect a CAT6 cable from UTP port of transmitter to UTP port of receiver.
Connect the VGA sink(such as HD-LCD、HD-DLP）to receiver.
Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
Power on Transmitter and Receiver.

AN-KVM-VGA-UTP-EXT01	VGA USB KVM over CAT5/CAT6e extender, audio support
AN-VGA-UTP-EXT01	VGA over UTP Cat5e/6 extender
