10G Optical-Electrical-Optical Converter (3R Repeater), B Type XFP To UTP

XFP to UTP 10G Fiber Copper Media Converter

AD-net provides 10Gbps Ethernet media converter between SFP+ to UTP, and XFPto UTP. No matter what kind of media applied for 10Gbps Ethernet, it used to be the fiber as the media for transmission. 10G Ethernet standalone and module cards, brings you the best and simple solution for the Ethernet conversion between media of copper wire and fiber, with the speed of 10G. AN-M10-10G its module card allows you to cascade multiple AN-CH10 2U Rack (16 channel) chassis for managing at the same time. With various Interface: SFP+ to RJ45, XFPto RJ45.

Support Jumbo Frame
Transparent Transport and very low delay
Support ITUT prescribed DWDM/CWDM wavelength
Support DMI function for SFP+/XFP fiber module
Support Loop-back test function
Economic In-band Management function
Powerful Network Management function (Web, SNMP, Console)
Support hot plugging
Support 2U Rack (16 channel) and standalone use
Full State Led display
Easy installation
UTP cable length detection (only RJ45 interface)

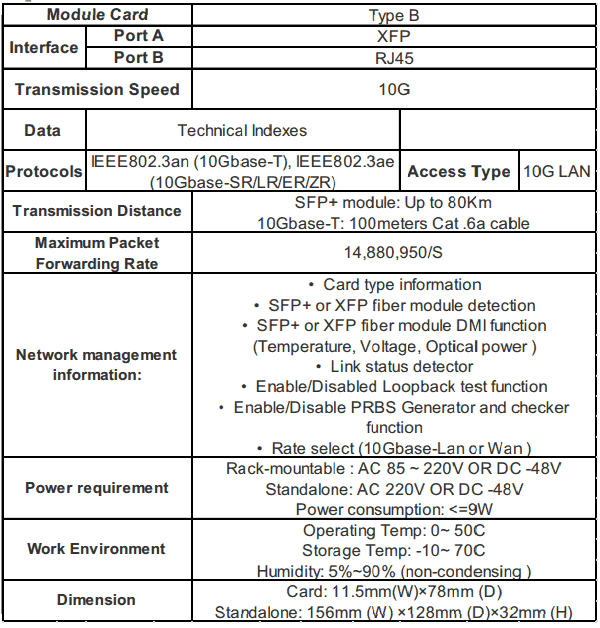

10G OpticalElectricalOptical Table

AN-M10-10G-MC-M(B)

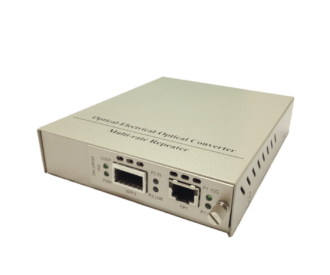

Standalone 10G Fiber Copper Media Converter, B Type: XFP To UTP

Description
