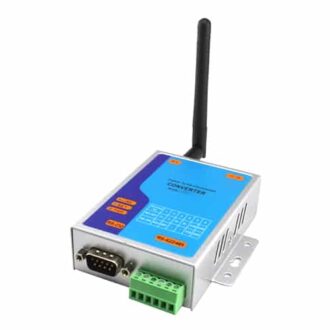

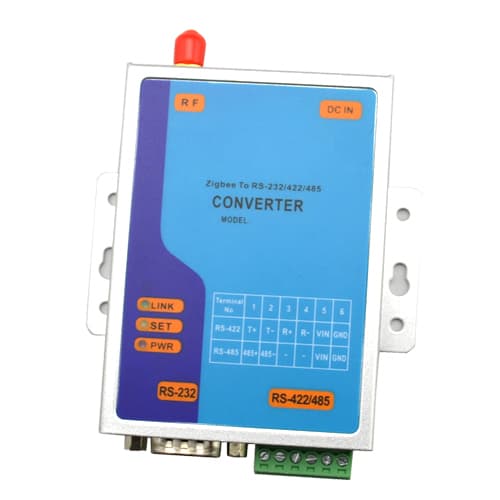

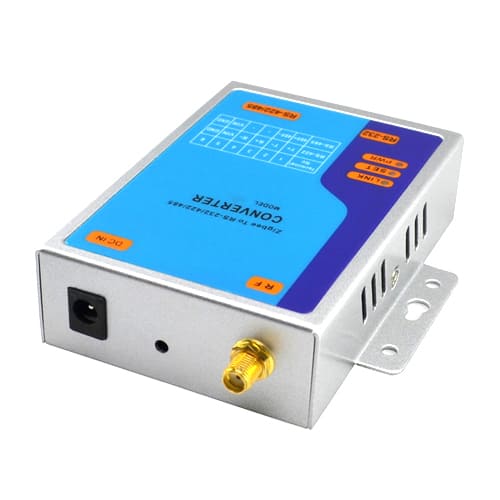

Zigbee to RS-232/422/485 converter

The AN-ZIGBEE-RS is a cost effective and highly integrated Serial-to-Zigbee wireless Converter. Built on ZigBee technology, the AN-ZIGBEE-RS is ideal for a range of applications from simple RS-232 cable replacement to sophisticated multi-drop RS-485 networks and everything in between. Available in RS-232/RS-422/RS-485.

Utilizes globally available 2.4 GHz ISM band
Control and Configuration with UART commands.
65535 unique node addresses, IDs allow multiple large networks to coexist.
Programmable Transmit Power Output, max. 12 dBm
Complete IEEE 802.15.4 spec compliant
Typical Receiver Sensitivity –102 dBm
Typical Throughput rate 250,000 bps
Obstructed signal range to 500 meters @ 12dBm/PA and -102dBm/LNA
Multiple Low Power Operating modes
3-in-1 RS-232/422/485 interface Max.115.2Kbps Serial interface and zigbee.
Supports 4- and 2-wire RS-485 with AUTO-SEND™ and built-in terminator
Supports industrial 24 VDC power input and optional Power over Serial
Terminal block accessories for easy RS-422/485 serial wiring
Easy and powerful configuration program
Approval CE, RoHS

Serial Interface
Interface Type	RS-232/485/422 (optional)
Connector	RS-232		DB9(Male)
	RS-485/422		6-pin Terminal block
LED Indicators	SET			Indication Zigbee Link, yellow on Zigbee Link established
	LINK			Data Sending/Receiving between Serial and the Zigbee
	PWR			Power indicator
Power Supply	9~24VDC@1A
Physical Characteristics
Installation	DIN-Rail Mounting
Housing	Iron (1mm)
Weight	0.5Kg
Dimensions	100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)
Environmental Limits
Operating Temperature		-35 ~ 70°C
Storage Temperature		-45 ~ 125°C
Ambient Relative Humidity		5% to 95%(non-condensing)
Standards and Certifications
RoHS, CE

Pin Assignment

pins

PIN	RS-232
1/4/6/9	–
2	RXD(in)
3	TXD(out)
5	GND
7	CTS(out)
8	RTS(in)

RS-485/232 6-pin Terminal block

1	2	3	4	5	6
485+(T+)	485-(T-)	R+	R-	VCC(9~32VDC)	GND

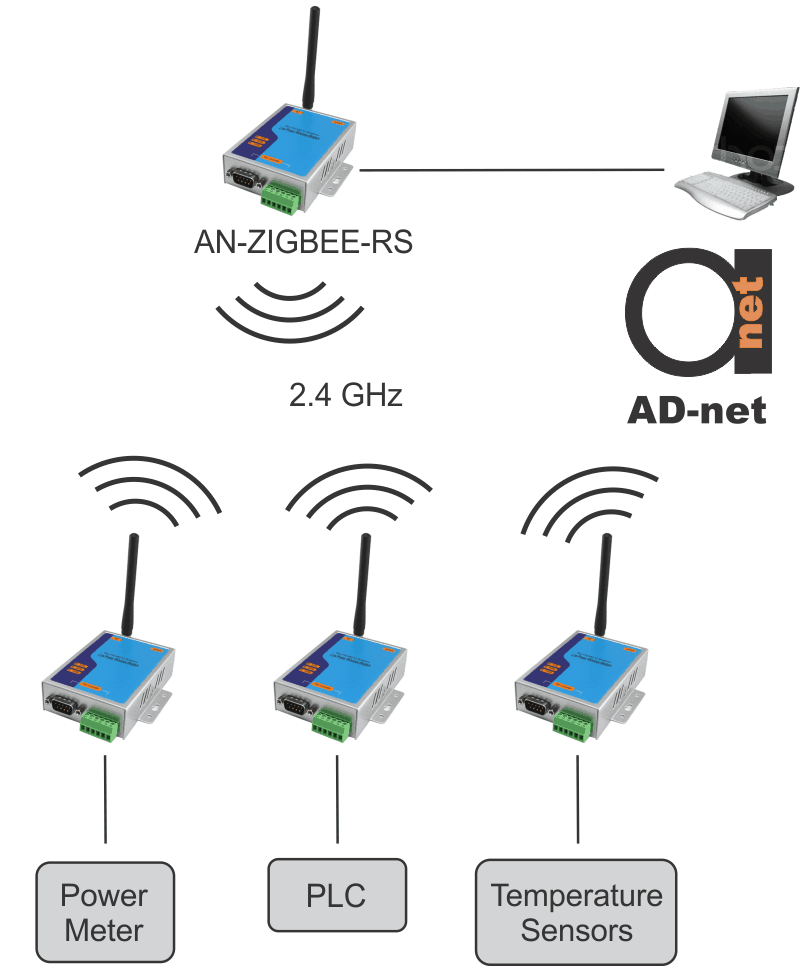

AN-ZIGBEE-RS_scheme

AN-ZIGBEE-RS

Zigbee to RS-232/422/485 Converter 2.4GHz 500meter

Description

ZigBee is the global wireless language connecting dramatically different devices to work together and enhance everyday life. The ZigBee Alliance is a non-profit association of more than 280 member companies driving development of ZigBee wireless technology. The Alliance promotes world-wide adoption of ZigBee as the leading wirelessly networked, sensing and control standard for use in energy, home, commercial and industrial areas.

Product Applications

Wireless remote control
Automatic data acquisition systems
Meteorology and hydrology monitoring
Building automation
Personal area network
Gate safety check on work attendance
POS system
Wireless monitoring of machine room facilities;
PC peripherals
